Bag Filter(Cloth bag filter)

The bag filter (cloth bag filter) is a new type of filtration system. It has characteristics of high filtering precision, large capacity, low cost and convenient maintenance. Also its specification is complete, and material is diverse.

Classification of Bag Filter(Cloth bag filter)

1, according to bag number, it can be divided into single bag and multi- bag.

2, according to inputting holes position, it can be divided into side entry type and top entry type, now side entry type has been replaced by top entry type.

3, according to the users’ requirements to filtration temperature, it can also offer sandwich filter, generally for double structure. Interlayer can access to steam or thermal oil to maintain and improve fluid temperature, prevent fluid solidification and improve the viscous liquid filtration speed, or meet temperature requirements of next procedure.

Usages of Bag Filter(Cloth bag filter)

The bag filter(cloth bag filter) is widely used in food, heath, pharmaceutical and other industry.

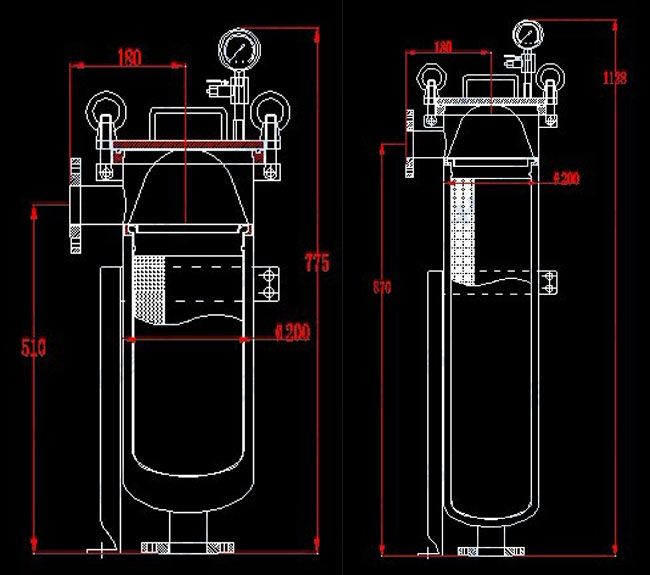

Structure of Bag Filter(Cloth bag filter)

Characteristics of Bag Filter(Cloth bag filter)

1. The filter bag is small leakage rate, which guarantee the quality of the filter.

2. The bag filter can carry more work pressure. Small pressure loss lows operating cost, has obvious energy saving effect.

3. The filter accuracy has reached to 0.1 um.

4. Stainless steel bag filter has characteristics of large quantity and small volume, especially for high viscosity of liquid with high filtering speed, low sticky degree and easy cleaning.

5. Based on the working principle and structure, it is easy to change the filter bag, and the filter is not need to clean, thus saving work time.

6, Filter bag can be repeated use.

7. The bag filter has range application, agile use and varied installation.

Technical Parameters of Bag Filter(Cloth bag filter)

Model	Filtration bag size No	Filtration bag quantity	Filtration area (m2)	In and out of the aperture(mm)	Working pressure (Mpa)	Biggest flow
Model	Filtration bag size No	Filtration bag quantity	Filtration area (m2)	In and out of the aperture(mm)	Working pressure (Mpa)	（m3/h）
DL-2P2S	2	2	1.0	3-4’’	1.0	90
DL-3P2S	2	3	1.5	3-4’’	1.0	135
DL-4P2S	2	4	2.0	3-6’’	1.0	180
DL-5P2S	2	5	2.5	3-6’’	1.0	225
DL-6P2S	2	6	3.0	3-6’’	1.0	270
DL-7P2S	2	7	3.5	3-8’’	1.0	315
DL-8P2S	2	8	4.0	4-8’’	1.0	360
DL-10P2S	2	10	5.0	6-8’’	1.0	450
DL-12P2S	2	12	6.0	6-10’’	1.0	540
DL-14P2S	2	14	7.0	8-10’’	1.0	630
DL-16P2S	2	16	8.0	8-12’’	1.0	720
DL-18P2S	2	18	9.0	10-14’’	1.0	810
DL-20P2S	2	20	10.0	10-16’’	1.0	900
DL-22P2S	2	22	11.0	12-18’’	1.0	990
DL-24P2S	2	24	12.0	14-18’’	1.0	1080

Notes: The technical parameters of filter in the diagram are standard configuration, any other requires, welcome to contact us.

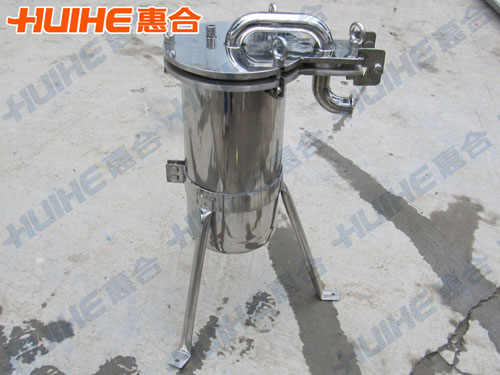

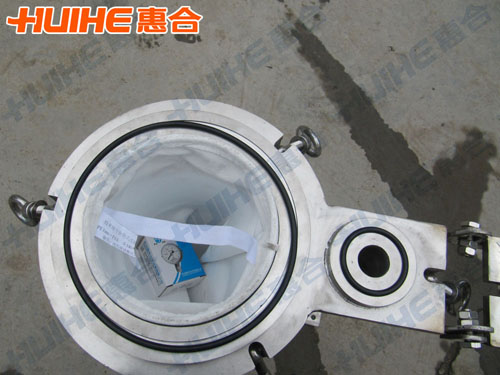

Bag Filter(Cloth bag filter) Finished Picture
